Power	Color	Wavelength                           (nm)	Forward voltage Vf(V)	Forward current If(mA)	Luminous intensity(LM)（Typical）
1.5W RGB	Red	620-640	2.0-3.0	150	16-25
	Green	510-530	3.0-3.8		40-50
	Blue	460-470	3.0-3.8		8-11
3W   RGB	Red	620-640	2.0-3.0	350	35-40
	Green	510-530	3.0-3.8		55-70
	Blue	460-470	3.0-3.8		15-20
9W   RGB	Red	620-640	2.0-3.0	700	65-85
	Green	510-530	3.0-3.8		85-95
	Blue	460-470	3.0-3.8		25-30



Note:

1) Two or three legs are both available.

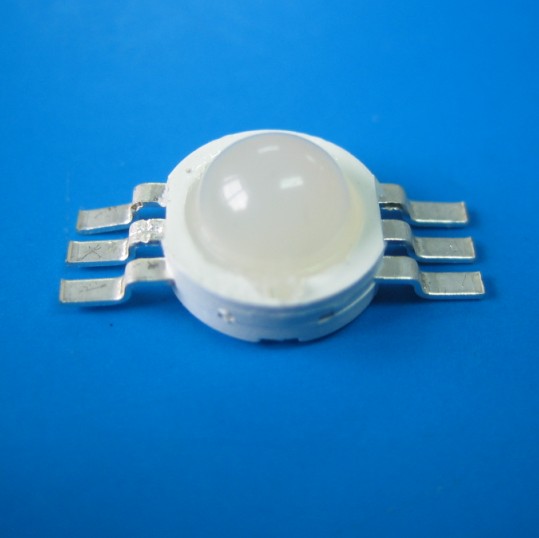

2) diffuesed is available.

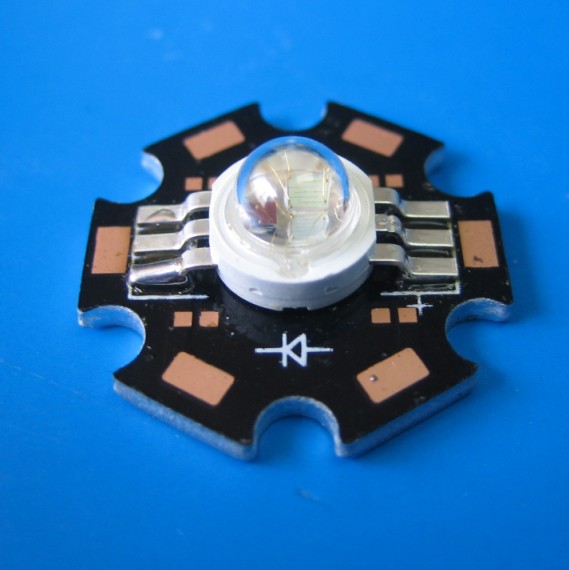

3) With star PCB or not are both available.
