| Part Number | Chip Material | Emitting Color | Lens Type | Working Current IF(mA) | Fofward Voltage VF(V) | Dominant Wavelength λD(nm) | Luminous Flux(lm) | Reverse Current IR(μA)AT VR=5V | Viewing Angle(°) |

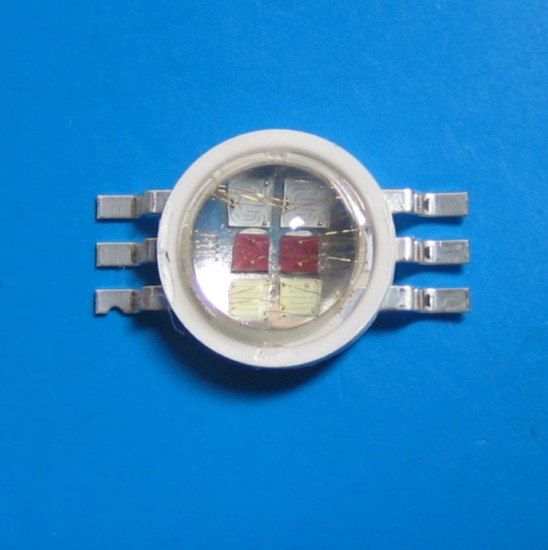

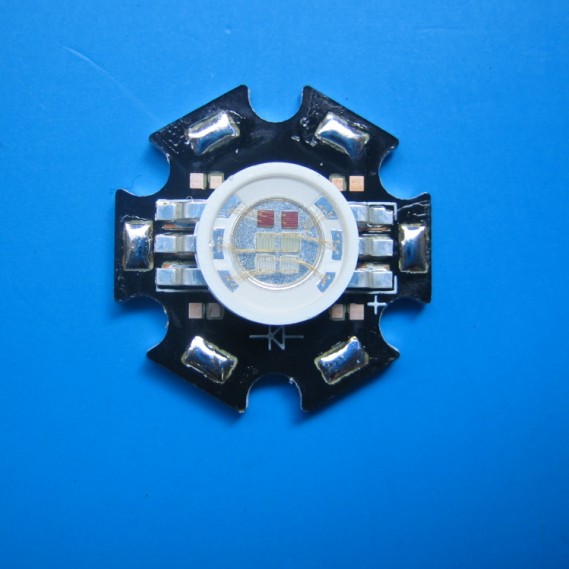

| 6W RGB | AlGaInP | Red | Water Clear | 700 | 2.2~2.8 | 620~640 | 100—160 | ≤50 | 125±5 |
| InGaN | Green | Water Clear | 700 | 3.4~4.0 | 510~530 | 120—175 | ≤50 | 125±5 | |
| InGaN | Blue | Water Clear | 700 | 3.2~3.8 | 460~470 | 20—30 | ≤50 | 125±5 |
Note:
1) Larger base than normal RGB LED.
2) Higher brightness.
3) Better heat dissipation.
3) With lens or wihout lens are available.
