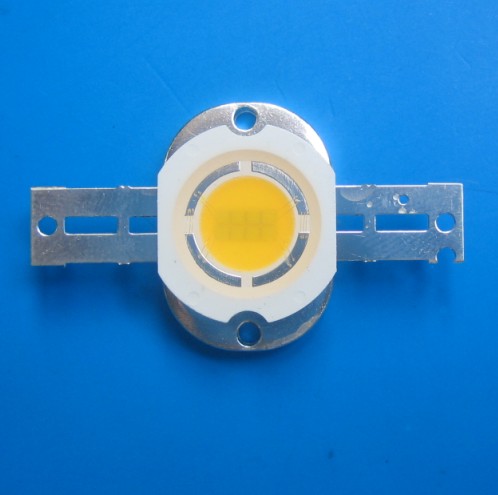

20W power LED

Name:20W power LED

Forward Voltage : 13 ~ 15V

Forward Current : Typ. 1400mA

Luminous Flux : 1200 ~ 1800 Lumen

Emitting Color : White

Operation Temperature : -20℃ ~ 80℃

Storage Temperature : -20℃ ~ 100℃

Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.

Description

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
20W	White	Water Clear	1400	13-15	5000-10000K	1200～1800	≤50	150±10
20W	Warm White	Water Clear	1400	13-15	2700-4500K	1200～1800	≤50	150±10
