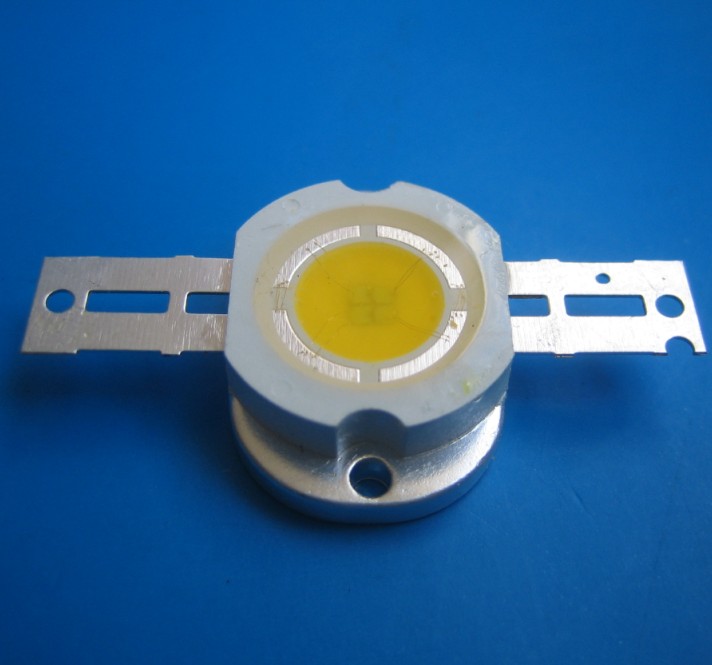

4W power LED

Name:4W power LED

Forward Voltage : 12 ~ 14V

Forward Current : Typ. 350mA

Luminous Flux : 350 ~ 400 Lumen

Emitting Color : White

Operation Temperature : -20℃ ~ 80℃

Storage Temperature : -20℃ ~ 100℃

Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.

Description

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
4W	White	Water Clear	350	12-14	5000-10000K	350～400	≤50	150±10
4W	Warm White	Water Clear	350	12-14	2700-4500K	350～400	≤50	150±10
