Home > Products > LED components > High power LED

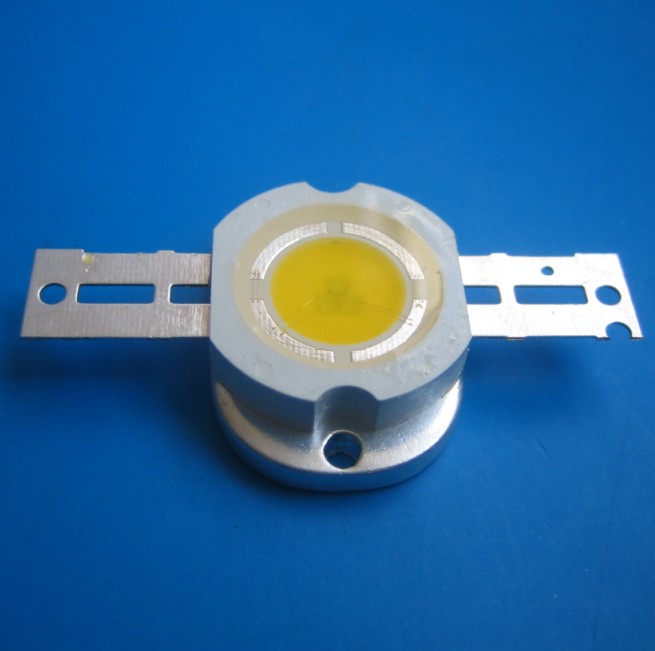

3W power LED

Name:3W power LED

Forward Voltage : 9.0 ~ 11V

Forward Current : Typ. 350mA

Luminous Flux : 270 ~ 320 Lumen

Emitting Color : White

Operation Temperature : -20℃ ~ 80℃

Storage Temperature : -20℃ ~ 100℃

Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.

Description

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
3W	White	Water Clear	350	9-11	5000-10000K	270～320	≤50	150±10
3W	Warm White	Water Clear	350	9-11	2700-4500K	270～320	≤50	150±10

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
3W	White	Water Clear	1	3-3.6	5000-10000K	270～320	≤50	150±10
3W	Warm White	Water Clear	1	3-3.6	2700-4500K	270～320	≤50	150±10
