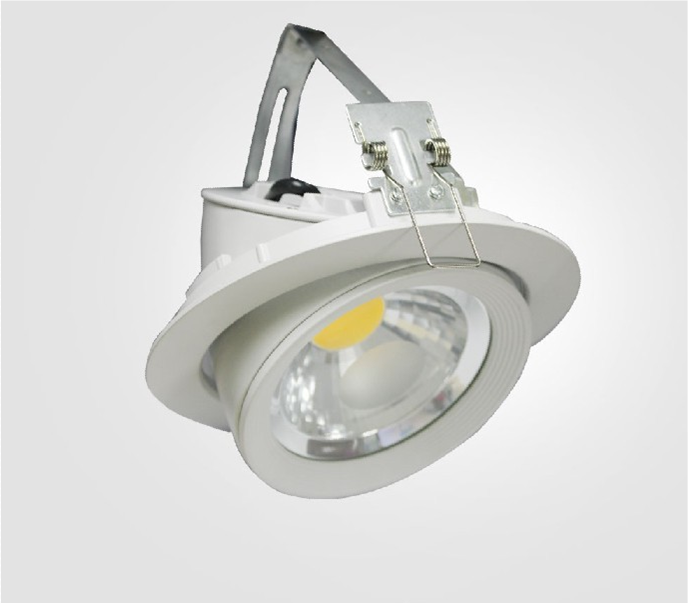

20W COB LED gimbal downlight
Name:20W COB LED gimbal downlight

Product Name:20W COB LED gimbal downlight
Product Model:ECT-G20W
Product Power:20W
Shell Material:Aluminum
Available Colors:WW/PW/CL/Others

Description

Model
ECT-G20W
Power
20W
Voltage
AC85-265V
LED
COB LED
Luminous flux
1700LM
Driver
External isolated driver, PF>0.95
Size
Dia189mm*H143mm
Cut out hole size
175mm
CRI
>75(warm white)
>80(pure white)
Color temperature
2700-6500K
Bean angle
60 degree
Installation
Recessed
Material
Al. housing + reflector + glass
Dimmable
Available

Fin style heat sink       External isolated driver

Note:
Horizon direction: 360 degree/Vertical direction: 45 degree.
Good looking and design, high-end quality.
External isolated driver with PF>0.95, steady performance.
Fin style heat sink which is very good at heat dissipation.
Dimmable is available.

Application:
Home /office lighting, supermarket, food shops. Under cabinet lighting, recess lighting, shelf lighting. Art lighting
