Operation Temperature : -20℃ ~ 80℃
Storage Temperature : -20℃ ~ 100℃
Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.
|
Part Number
|
Chip
|
Lens Color
|
Forward voltage
Vf(V) |
L m@Forward current If(mA)
=60mA
|
||||
|
Material
|
Color
|
λD(nm)
|
Min
|
Max
|
Min
|
Typ
|
||
|
10WAIDB-3P
|
InGaN
|
White
|
2700-10000K
|
Water Clear
|
3.0
|
3.7
|
15
|
21
|
|
10BAIDB-3P
|
InGaN
|
Blue
|
450-475
|
3.0
|
3.7
|
4
|
5
|
|
|
10GAIDB-3P
|
InGaN
|
Green
|
500-540
|
2.7
|
3.7
|
10
|
12
|
|
|
10RAIDB-3P
|
AlGalnP
|
Red
|
620-660
|
1.8
|
2.5
|
4
|
6
|
|
|
10YAIDB-3P
|
AlGalnP
|
Yellow
|
580-595
|
1.8
|
2.5
|
4
|
6
|
|
Note:

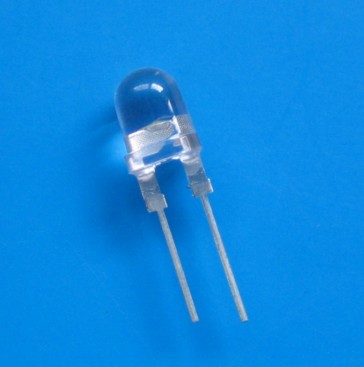

1) High power dip LED with 60mA operation.
2) With flange.
3) Viewing angle: 25 and 45 degree are availlable.
4) Application in high power flashlight, car lights, decoration and so on
