Characteristics Parameter at Ta=25°C Tj≤80°C IR=IG=IB=350mA
|
||||||
|
Part Number
|
Emitting Color
|
Wavelength λd(nm)
|
Lens Type
|
Forward Voltage Vf(V)
|
Luminous Flux(lm)
|
Viewing Angle (°)
|
|

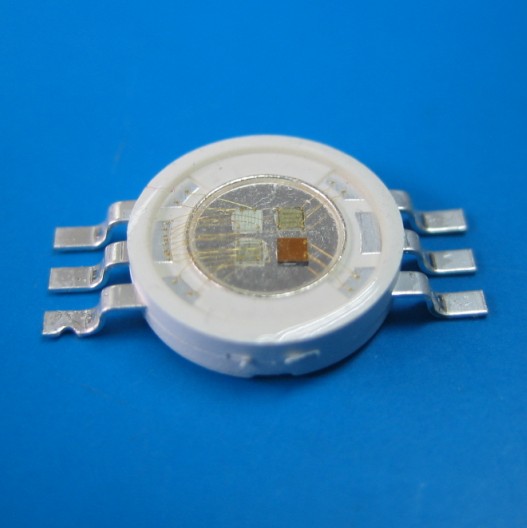

ARGGBC4
|
Red
|
660—665
|
Water Clear/No Lens
|
1.8—2.4
|
40—50
|
120±5
|
|
Green
|
525—530
|
3.0—3.6
|
50—60
|
|||
|
Blue
|
455—465
|
3.0—3.6
|
13—20
|
|||
|
Green
|
525—530
|
3.0—3.6
|
50—60
|
|||
|
Absolute Maximum Ratings at Ta=25°C
|
||||||
Note:
1) With lens or no lens are available.
2) Larger LED body.higher lumens and brightness.
3) Four colors combination according customers' special needs.
