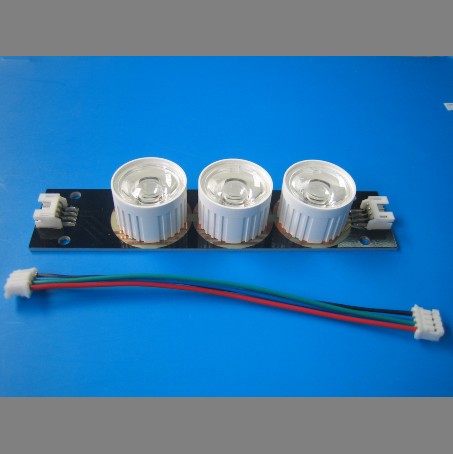

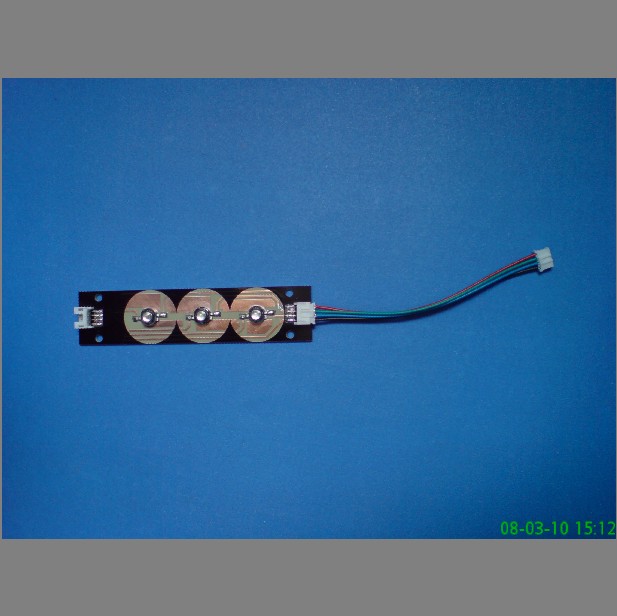

1) RGB LED mdoule.
2) With lens or without lens are available.
3) Lens viewing angle depends on customer's requirement.
4) Wire length depends on csutomer;s requirement also.
5) 350mA 3W power.
|
Characteristics Parameter at Ta=25°C Tj≤80°C IR=IG=IB=350mA
|
||||||
|
Part Number
|
Emitting Color
|
Wavelength Wd(nm)
|
Lens Type
|
Forward Voltage Vf(V)
|
Luminous Flux(lm)
|
Viewing Angle (°)
|
|
3W RGB module
|
RED
|
620—630
|
Water Clear
|
2.0—2.6
|
50—60
|
120±5
|
|
GREEN
|
520—530
|
3.0—3.6
|
65—80
|
|||
|
BLUE
|
460—470
|
3.0—3.6
|
15—20
|
|||
|
Absolute Maximum Ratings at Ta=25°C
|
||||||
|
Characteristics
|
Symbol
|
MAX
|
Unit
|
|||
|
Power Dissipation
|
PD
|
R:910 G:1260 B:1260
|
mW
|
|||
|
Peak Forward Current (1/10 Duty Cycle 0.1ms Pulse Width)
|
IFP
|
700
|
mA
|
|||
|
Reverse Current
|
IR
|
≤50
|
μA
|
|||
|
Reverse Voltage
|
VR
|
5
|
V
|
|||
|
Operating Temperature
|
Topr
|
-40— 80
|
°C
|
|||
|
Storage Temperature
|
Tspr
|
-40 —100
|
°C
|
|||
|
Lead Soldering Temperature(5mm From Body)
|
260（≤5s）
|
°C
|
||||
